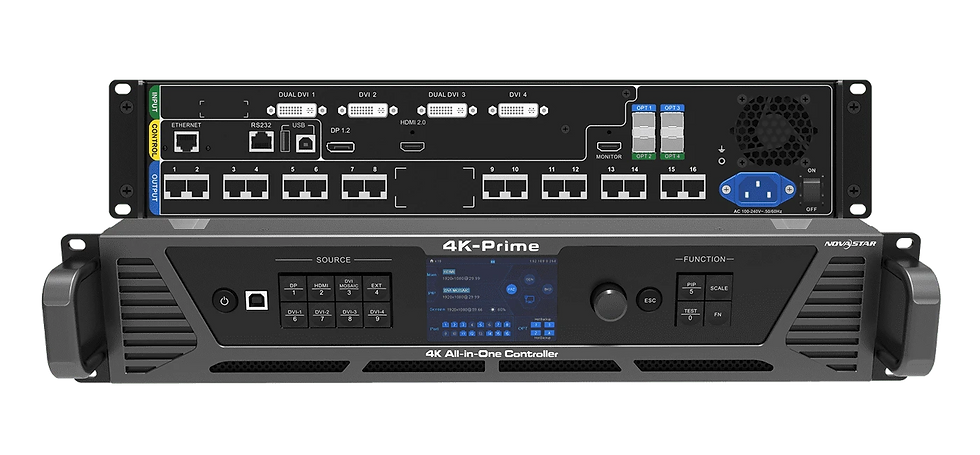

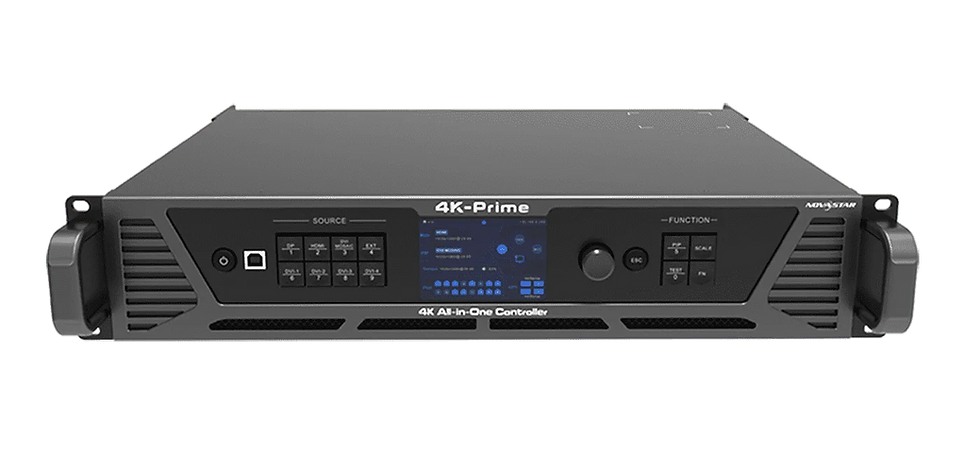

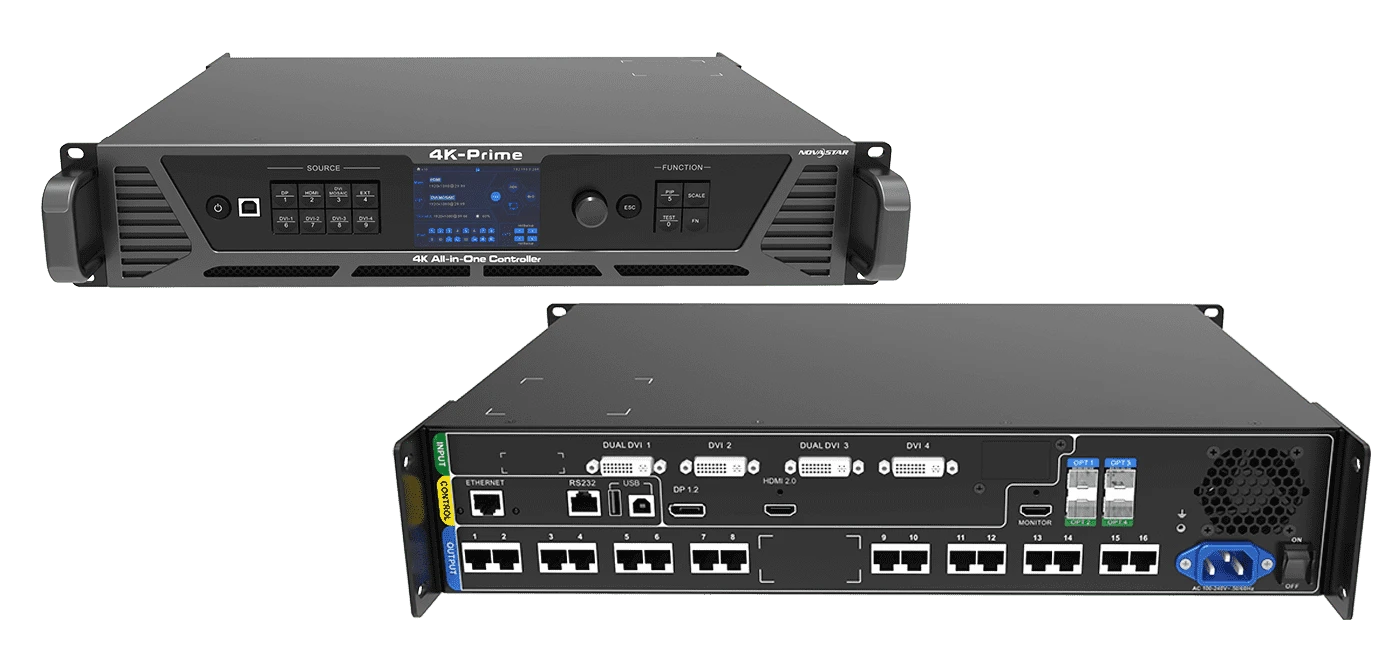

The 4k- Prime is NovaStar’s all-in-one controller that features excellent video processing, control capabilities, and LED screen configurations. NovaStar’s V-Can smart control software allows for faster and simpler operations with the 4K-Prime, in addition to enabling richer image mosaic effects. The 4K-Prime is an excellent choice for fine-pitch LED displays, conference rooms, event spaces, exhibition locations, and other high-end rental applications. • A variety of inputs: 1 × DP 1.2, 1 × HDMI 2.0 and 4 × DVI • More output connectors, larger loading capacity • Provides 16 × Neutrik Ethernet outputs and 4 × optical fiber outputs, with loading capacity up to 10,400,000 pixels • DVI mosaic • HDR output • Up to 4 4K-Prime units can load a super-large screen. • V-Can (smart control software from NovaStar) supported • EDID management supported • Personalized image scaling: Full screen, pixel to pixel and custom • Customized BKG settings: Pure color BKG and BKG image
|

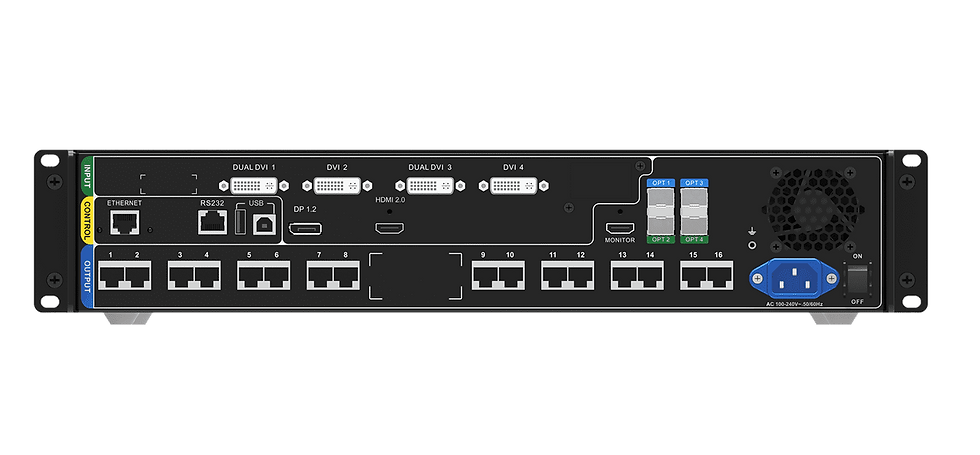

Input | ||
Connector | Quantity | Description |
DVI | 4 | Four DVIs are all single-link DVI connectors by default -Each DVI: Input resolutions up to 1920×1200@60Hz |
DP 1.2 | 1 | Input resolutions up to 3840×2160 @60Hz |
HDMI 2.0 | 1 | Input resolutions up to 3840×2160 @60Hz |
Output | ||
Connector | Quantity | Description |
Ethernet port | 16 | 16 × Gigabit Ethernet output connectors, allowing for a loading capacity up to 10,400,000 pixels |
OPT 1–4 | 4 | 4 optical fiber connectors support copy and hot backup modes when used for output simultaneously. |
OPT 1 transmits data of Ethernet ports 1–8. | ||
OPT 2 transmits data of Ethernet ports 9–16. | ||
OPT 3 & 4 serve as the copy/hot backup for OPT 1 & OPT 2 respectively. | ||
MONITOR | 1 | HDMI connector for output monitoring Resolutions up to 1920×1080@60Hz |
Control | ||
Connector | Quantity | Description |
ETHERNET | 1 | Connect to PC for communication, or connect to Web for device control |
USB (Type-B) | 1 | Connect to PC for debugging. Used as the input connector to connect another 4K-Prime unit |
USB (Type-A) | 1 | Used as the output connector to connect another 4K-Prime unit |
RS232 | 1 | Connect to the central control device. |
Overall Specifications | ||
Type | Description | |
Power connector | AC100-240V 50/60Hz | |
Operating temperature | 0°C to 50°C | |
Overall power consumption | 70 W | |
Dimensions | 482.6 mm × 373.0 mm × 94.6 mm | |
Package dimensions (flight case) | 550.0 mm × 561.0 mm × 155.0 mm | |
Net weight | 6.2 kg | |
Total Weight | 18kg |
