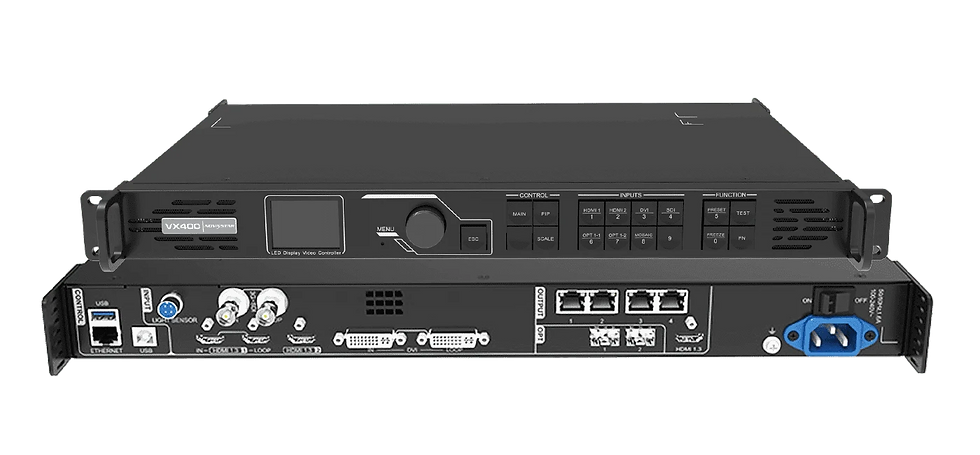

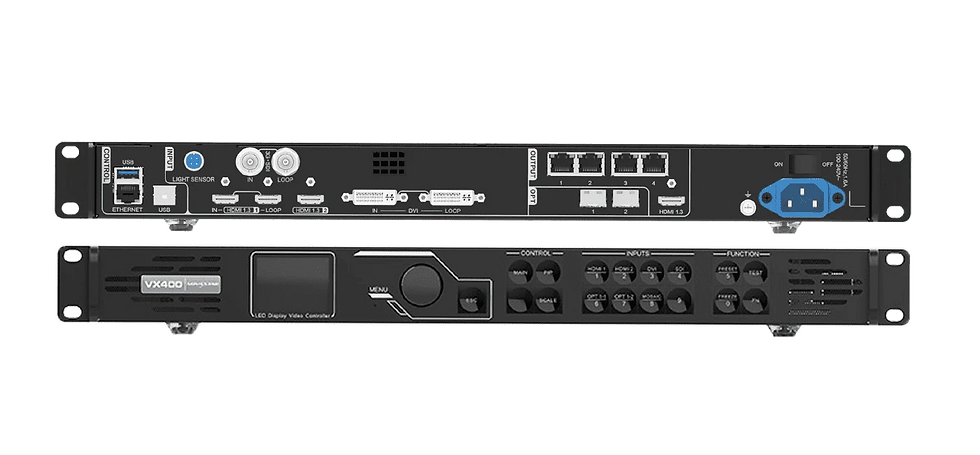

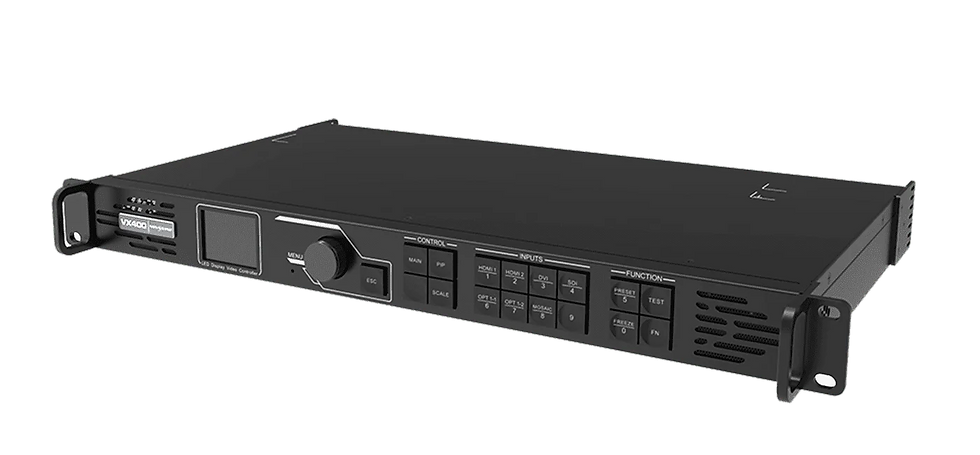

The VX400 is NovaStar’s new all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports and supports video controller, fiber converter, and Bypass working modes. A VX400 unit can drive up to 2.6 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens. The VX400 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features step-less output scaling, low latency, pixel-level brightness and Chroma calibration, and more, to present you with an excellent image display experience. The VX400 meets the needs of the broadcast sector to a large extent with its user-friendly interface, professional interfaces integrated, excellent image quality, and flexible image control. • Up to 5 input connectors, including: 1x HDMI 1.3 (IN & LOOP), 1x HDMI 1.3, 1x optical fiber port (OPT1), 1x DVI (IN & LOOP), 1x 3G-SDI (IN & LOOP) • 2x layers • Low latency • Audio input and output • Self-adaptive OPT 1 for either video input or sending card output • Powerful video processing • Up to 10 user-defined presets supported • Mosaic input source supported • Up to 4 units cascaded for image mosaic • All-round color adjustment
|
Input Connectors | Bit Depth | Max. Input Resolution |
| |
HDMI 1.3 DVI OPT 1 | 8-bit | RGB 4:4:4 | 1920×1200@60Hz (Standard) |
|
YCbCr 4:4:4 | 3840×648@60Hz (Custom) |
| ||
YCbCr 4:2:2 | 600×3840@60Hz (Forced) |
| ||
YCbCr 4:2:0 | Not Supported |
| ||
10-bit | Not Supported |
| ||
12-bit | Not Supported |
| ||
3G-SDI | Max. input resolution: 1920×1080@60Hz |
| ||
DOES NOT support input resolution and bit depth settings. |
| |||
Supports ST-424 (3G), ST-292 (HD), and ST-259 (SD) standard video inputs. |
| |||
Output connectors |
| |||
Connector | Qty | Description |
| |
Ethernet ports | 4 | Gigabit Ethernet ports Max. loading capacity: 2.6 million pixels Max. width: 10,240 pixels Max. height: 8192 pixels |
| |
HDMI 1.3 | 1 | Support monitor and video output modes. The output resolution is adjustable. |
| |
Control Connectors |
| |||
Connector | Qty | Description | ||
Ethernet | 1 | Connect to the control PC or router. Status LEDs: | ||
Light Sensor | 1 | Connect to a light sensor to collect the ambient brightness, allowing for automatic screen brightness adjustment: | ||
USB | 2 | USB (Type-B): | ||
− Connect to the control PC. | ||||
− Input connector for device cascading | ||||
l USB (Type-A): Output connector for device cascading | ||||
Overall Specification |
| |||
Electrical Parameters | Power connector | 100–240V~, 1.6A, 50/60Hz |
| |
Rated power consumption | 28 W |
| ||
Operating Environment | Temprature | 0°C to 45°C |
| |
Humidity | 20% RH to 90% RH, non-condensing |
| ||
Storage Environment | Temprature | –20°C to +70°C |
| |
Humidity | 10% RH to 95% RH, non-condensing |
| ||
Physical Specifications | Dimension | 483.6 mm × 301.2 mm × 50.1 mm |
| |
Net Weight | 4 kg |
| ||
Noise Level (typical at 25°C/77°F) | 45 db (A) |
