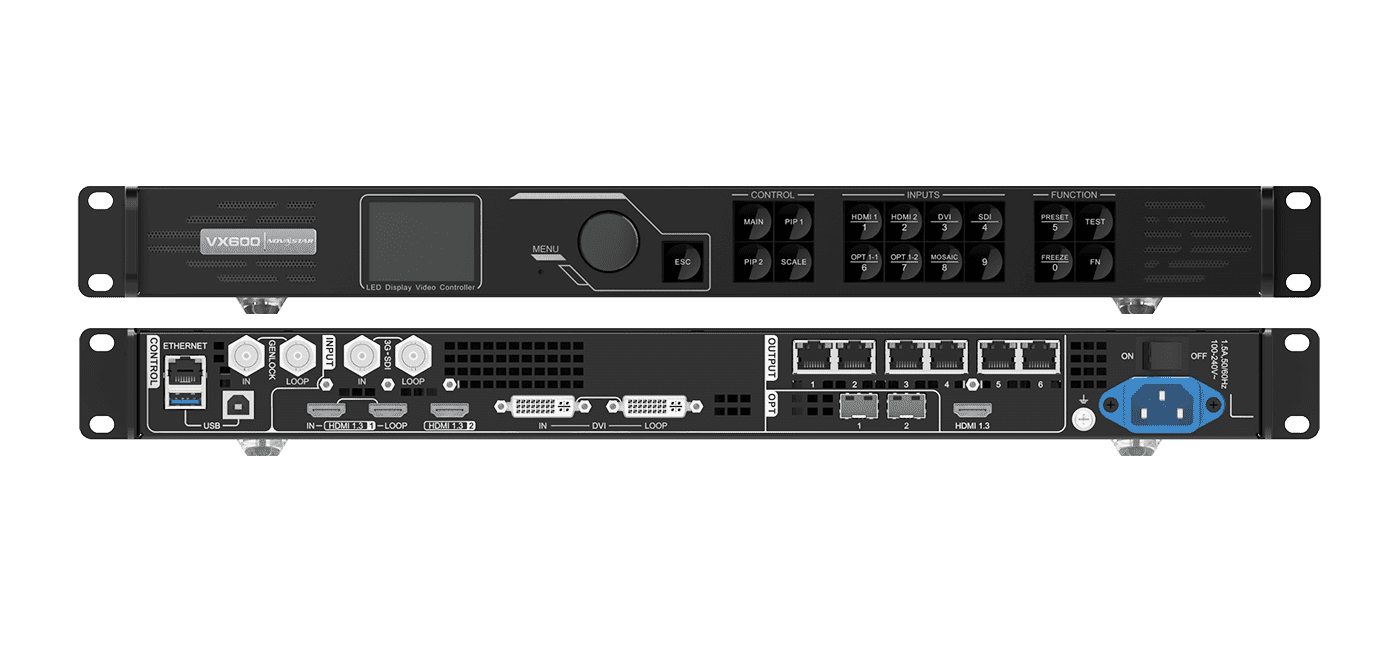

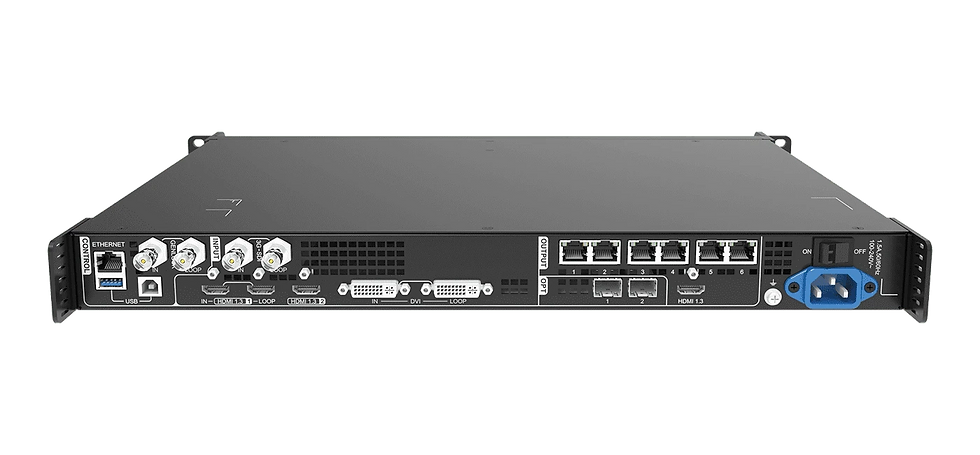

Video processing and video controlling are combined into one device in NovaStar’s VX600 all-in-one controller. It supports multiple operating modes (video controller, fiber converter, bypass mode) and has six Ethernet ports. The VX600 can be widely used in applications such as medium and high-end rental, stage control systems, and fine-pitch LED screens. • Up to 5 input connectors, including: 1x HDMI 1.3 (IN & LOOP), 1x HDMI 1.3, 1x optical fiber port (OPT1), 1x DVI (IN & LOOP), 1x 3G-SDI (IN & LOOP) • 3x layers • Low latency • Audio input and output • Self-adaptive OPT 1 for either video input or sending card output • Powerful video processing • Up to 10 user-defined presets supported • Mosaic input source supported • Up to 4 units cascaded for image mosaic • All-round color adjustment
|
Input Connectors | Bit Depth | Max. Input Resolution |
| |
HDMI 1.3 DVI OPT 1 | 8-bit | RGB 4:4:4 | 1920×1200@60Hz (Standard) |
|
YCbCr 4:4:4 | 3840×648@60Hz (Custom) |
| ||
YCbCr 4:2:2 | 600×3840@60Hz (Forced) |
| ||
YCbCr 4:2:0 | Not Supported |
| ||
10-bit | Not Supported |
| ||
12-bit | Not Supported |
| ||
3G-SDI | Max. input resolution: 1920×1080@60Hz |
| ||
DOES NOT support input resolution and bit depth settings. |
| |||
Supports ST-424 (3G), ST-292 (HD), and ST-259 (SD) standard video inputs. |
| |||
Output Connectors |
| |||
Connector | Qty | Description | ||
Ethernet | 6 | Gigabit Ethernet ports | ||
Max. loading capacity: 3.9 million pixels | ||||
Max. width: 10,240 pixels | ||||
Max. height: 8192 pixels | ||||
HDMI 1.3 | 1 | Support monitor and video output modes. | ||
The output resolution is adjustable. | ||||
Control Connectors |
| |||
Connector | Qty | Description |
| |
ETHERNET | 1 | Connect to the control PC or router |
| |
USB | 2 | USB 2.0 (Type-B): Input connector for device cascading |
| |
USB 2.0 (Type-A): Output connector for device cascading |
| |||
GENLOCK IN- LOOP | 1 | Connect to an external sync signal. |
| |
IN: Accept the sync signal. |
| |||
LOOP: Loop the sync signal. |
| |||
Overall Specification |
| |||
Electrical Parameters | Power Connector | 100–240V~, 1.5A, 50/60Hz |
| |
Rated power consumption | 28 W |
| ||
Operating Environment | Temperature | 0°C to 45°Ce |
| |
Humidity | 20% RH to 90% RH, non-condensing |
| ||
Storage Environment | Temperature | –20°C to +70°C |
| |
Humidity | 10% RH to 95% RH, non-condensing |
| ||
Physical Specifications | Dimension | 483.6 mm × 351.2 mm × 50.1 mm |
| |
Net weight | 4 kg |
| ||
Noise Level (typical at 25°C/77°F) | 45 dB (A) |
|
